Apex MT5

Katahdin Audio Apex MT5: Clarity and Detail in a Compact Design

Discover the compelling sound of the Katahdin Audio Apex MT5, a compact 2-way speaker designed for musicality and clarity. Pairing a high-performance midwoofer with a detailed ribbon tweeter, the Apex MT5 delivers precise imaging and an engaging soundstage from an elegantly sized enclosure, perfect for discerning listeners in small to medium spaces.

Key Features:

• High-Sensitivity 5" Midwoofer
• Ribbon Tweeter with Integrated Waveguide
• Optimized 2-Way Crossover for Seamless Driver Integration

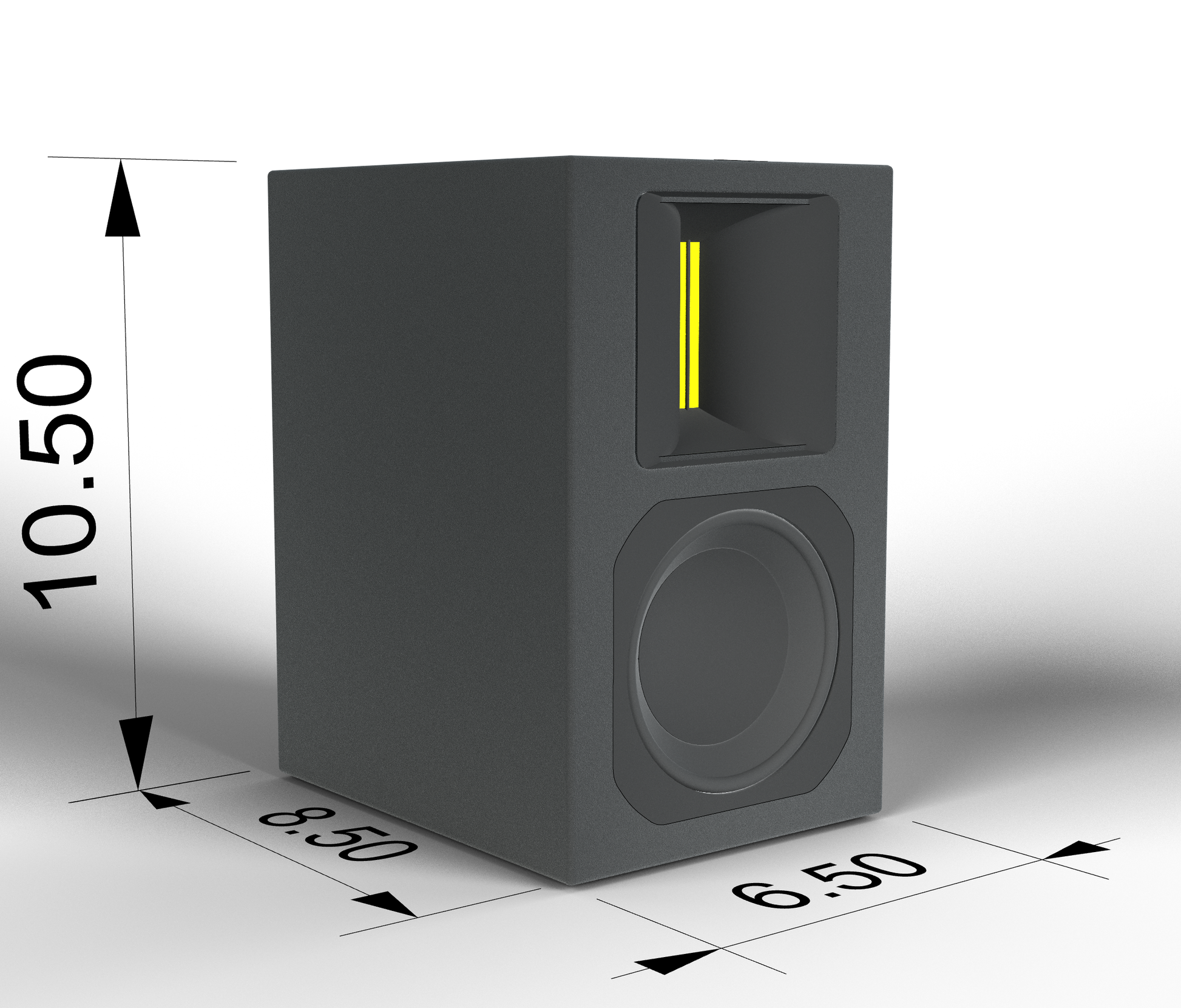

• Compact, Internally Braced Enclosure (6.5" W x 10.5" H x 8.5" D)
• Nominal 8-Ohm Impedance
• Estimated Sensitivity: Approx. 86 dB @ 2.83V/1m (Estimate - actual value depends on final crossover design)

Detailed Performance:

The Apex MT5 is engineered for listeners who value accuracy, detail, and a natural sonic presentation. The midwoofer provides a dynamic and responsive foundation, known for its ability to handle power and remain composed even during complex musical passages.

High frequencies are rendered with exceptional airiness and speed by the ribbon tweeter. Its integrated shallow waveguide assists in controlling dispersion, contributing to stable imaging and a coherent soundstage. The ribbon design excels at revealing subtle details and delivering crisp, lifelike transients.

While optimized for pairing with a subwoofer for the lowest octaves (rolling off below 60Hz), the Apex MT5 delivers satisfying mid-bass impact suitable for many music genres on its own. Its carefully tuned crossover ensures a smooth transition between the woofer and tweeter, resulting in a transparent and engaging listening experience.

Construction & Design:

Built for performance, the Apex MT5 features a robust, internally braced cabinet designed to minimize resonances. Construction utilizes 18mm front baffle and 12mm panels throughout. The precisely calculated rear port employs a flared design to reduce air turbulence, contributing to clean bass output down to its tuning frequency of approximately 60Hz.

Placement & Use:

The Apex MT5 is ideal as a high-performance stereo pair on stands or sturdy shelves in small to medium-sized rooms. Proper placement away from room boundaries will typically yield the best imaging and bass response.

Specifications:

• Design: 2-Way Compact Speaker, Rear-Ported Bass Reflex
• Drivers: 1 x 5" Midwoofer, 1 x Ribbon Tweeter
• Frequency Response: Approximately 60Hz - 20kHz (Usable in-room response)
• Nominal Impedance: 8 Ohms
• Sensitivity: Approx. 86 dB @ 2.83V / 1 meter
• Recommended Amplifier Power: 25 - 120 Watts per channel
• Dimensions (H x W x D): 10.5" x 6.5" x 8.5" (267mm x 165mm x 216mm)
• Approximate Weight: 15 lbs each (Will be lighter than MTM)

Experience the articulate sound and engaging musicality of the Katahdin Audio Apex MT5 – precision audio from a perfectly proportioned speaker.
