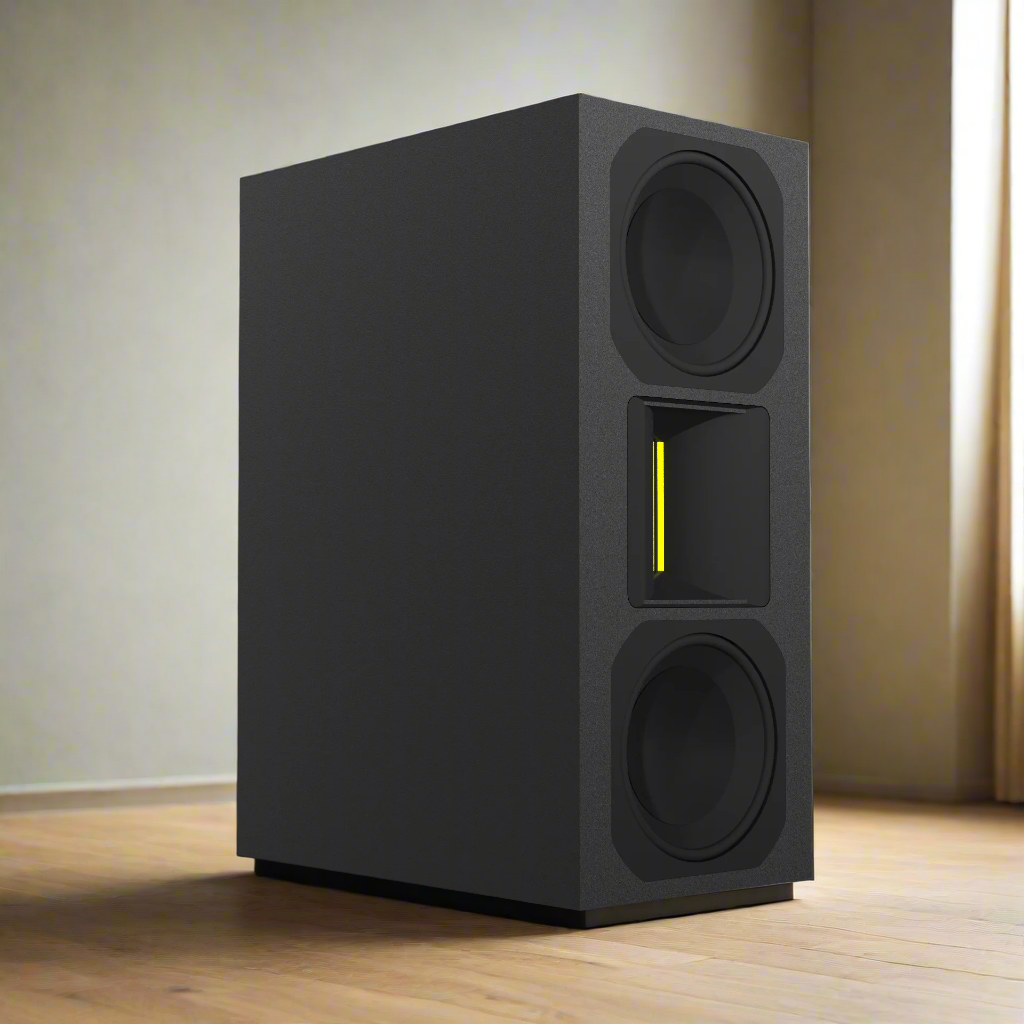

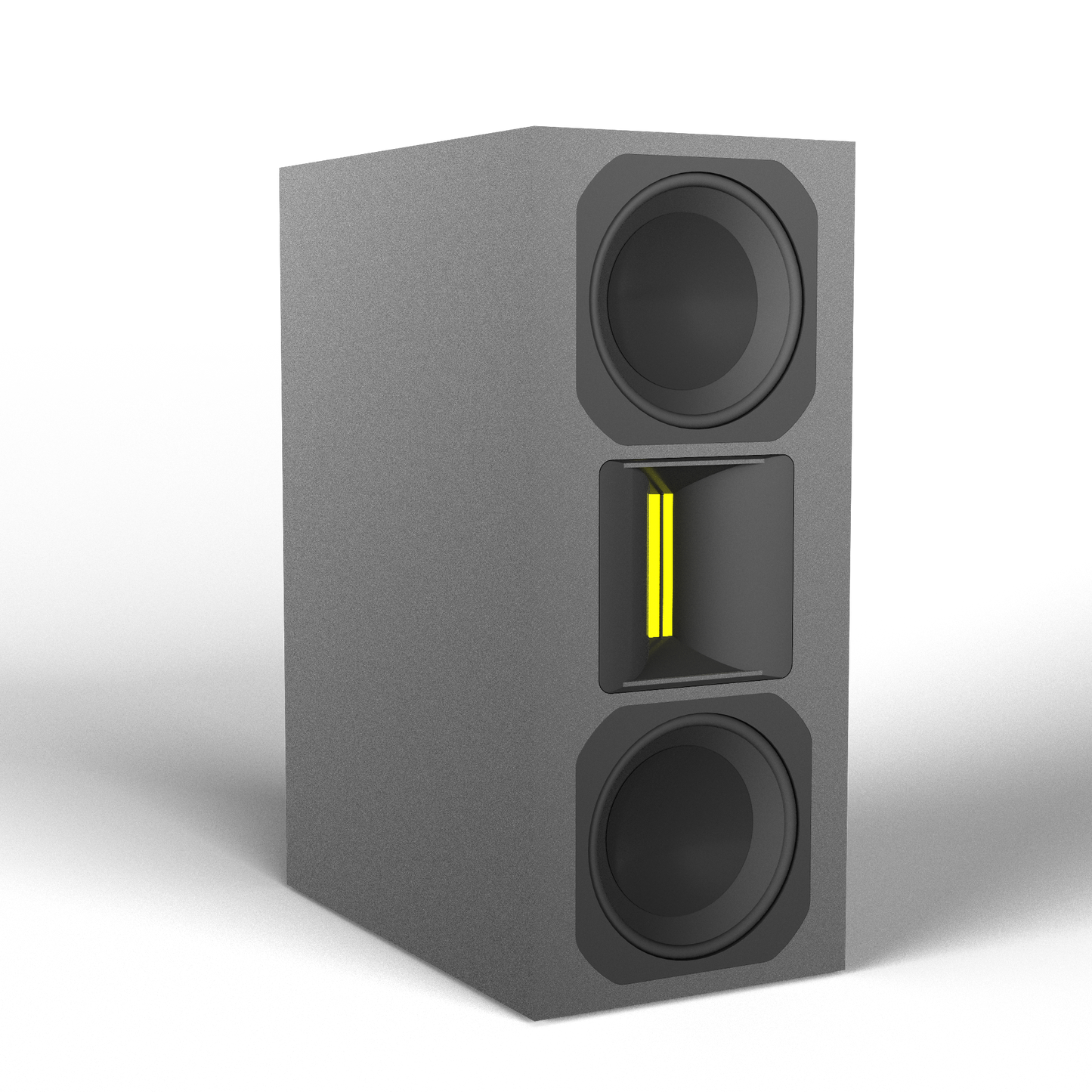

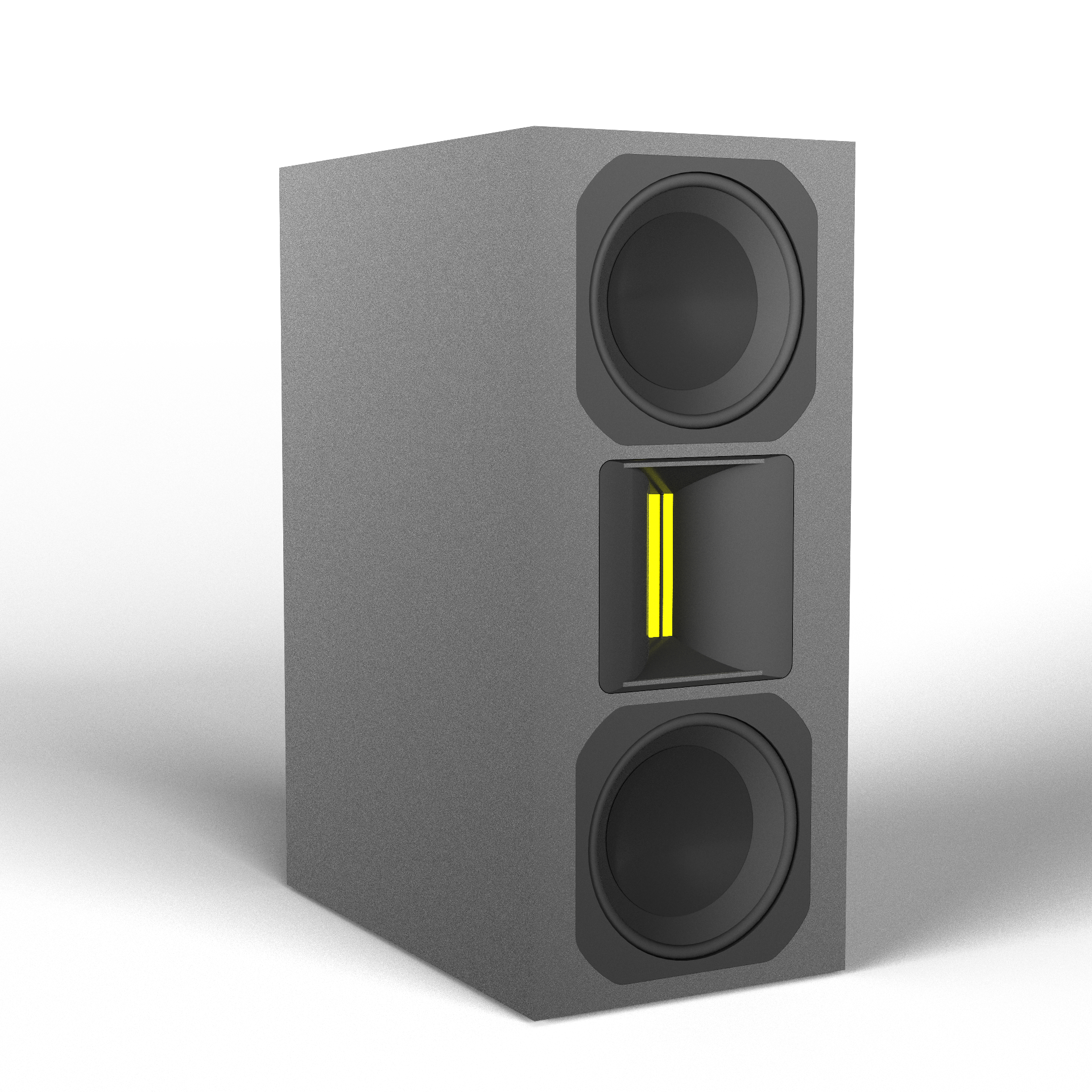

Apex MTM5

FREE Shipping! - Katahdin Audio Apex MTM5: Compact Size, Expansive Performance

Experience stunning audio clarity and output that defies expectations from a compact bookshelf speaker. The Katahdin Audio Apex MTM5 utilizes a sophisticated MTM (Midwoofer-Tweeter-Midwoofer) driver alignment to deliver impressive sound pressure levels, a remarkably wide soundstage, and precise imaging – all from an enclosure designed for modern living spaces.

Key Features:

• Dual Faital Pro 5FE120 High-Sensitivity 5" Midwoofers
• Beston RT002A Ribbon Tweeter with Integrated Waveguide
• MTM Configuration for Enhanced Output and Controlled Dispersion
• Compact, Internally Braced Enclosure (6.5" W x 10.5" H x 8.5" D)
• Nominal 4-Ohm Impedance for Broad Amplifier Compatibility
• High Sensitivity: 88.5 dB @ 2.83V/1m

Detailed Performance:

The Apex MTM5 is engineered for discerning listeners seeking dynamic range, transparency, and a convincing stereo image without requiring large speaker cabinets. The MTM configuration, powered by two high-performance Faital Pro midwoofers known for their sensitivity and power handling, ensures effortless output and minimizes midrange compression, delivering clear, composed sound even during demanding musical passages or at higher listening levels

High frequencies are rendered with exceptional airiness and detail by the Beston RT002A ribbon tweeter. Its integrated shallow waveguide promotes excellent horizontal dispersion, contributing significantly to the speaker's expansive soundstage and ensuring a wide "sweet spot" for immersive listening. The ribbon's inherent speed delivers crisp transients and helps reveal subtle nuances in recordings.

While optimized for seamless integration with a subwoofer for the deepest bass notes (rolling off below 60Hz), the Apex MTM5 provides satisfying mid-bass punch and presence for most music genres in small to medium-sized rooms. Its relatively high sensitivity makes it compatible with a wide range of quality amplifiers.

Construction & Design:

Built for lasting performance, the Apex MTM5 features a robust, internally braced cabinet designed to minimize unwanted resonances that can color the sound. Construction utilizes a solid 3/4" front baffle and 1/2" panels throughout. The precisely calculated rear port employs a flared design to reduce air turbulence, contributing to clean and articulate bass output down to its tuning frequency of approximately 53Hz.

Placement & Use:

The Apex MTM5 excels as a high-performance stereo pair in small to medium rooms or as front left/right channels in a compact, high-fidelity home theater setup. The tweeter's rotatable design allows for horizontal orientation (e.g., for center channel use), although maintaining a listening position within approximately ±10 degrees horizontally is recommended to experience the most coherent sound, avoiding the vertical off-axis lobing effects characteristic of MTM alignments.

Specifications:

• Design: 2-Way MTM Bookshelf Loudspeaker, Rear-Ported Bass Reflex
• Drivers: 2 x Faital Pro 5FE120 5" Midwoofers, 1 x Beston RT002A Ribbon Tweeter
• Frequency Response: Approximately 53Hz - 20kHz (Usable in-room response)
• Nominal Impedance: 4 Ohms
• Sensitivity: 88.5 dB @ 2.83V / 1 meter (85.5 dB @ 1W/1m)
• Recommended Amplifier Power: 60 - 300 Watts per channel

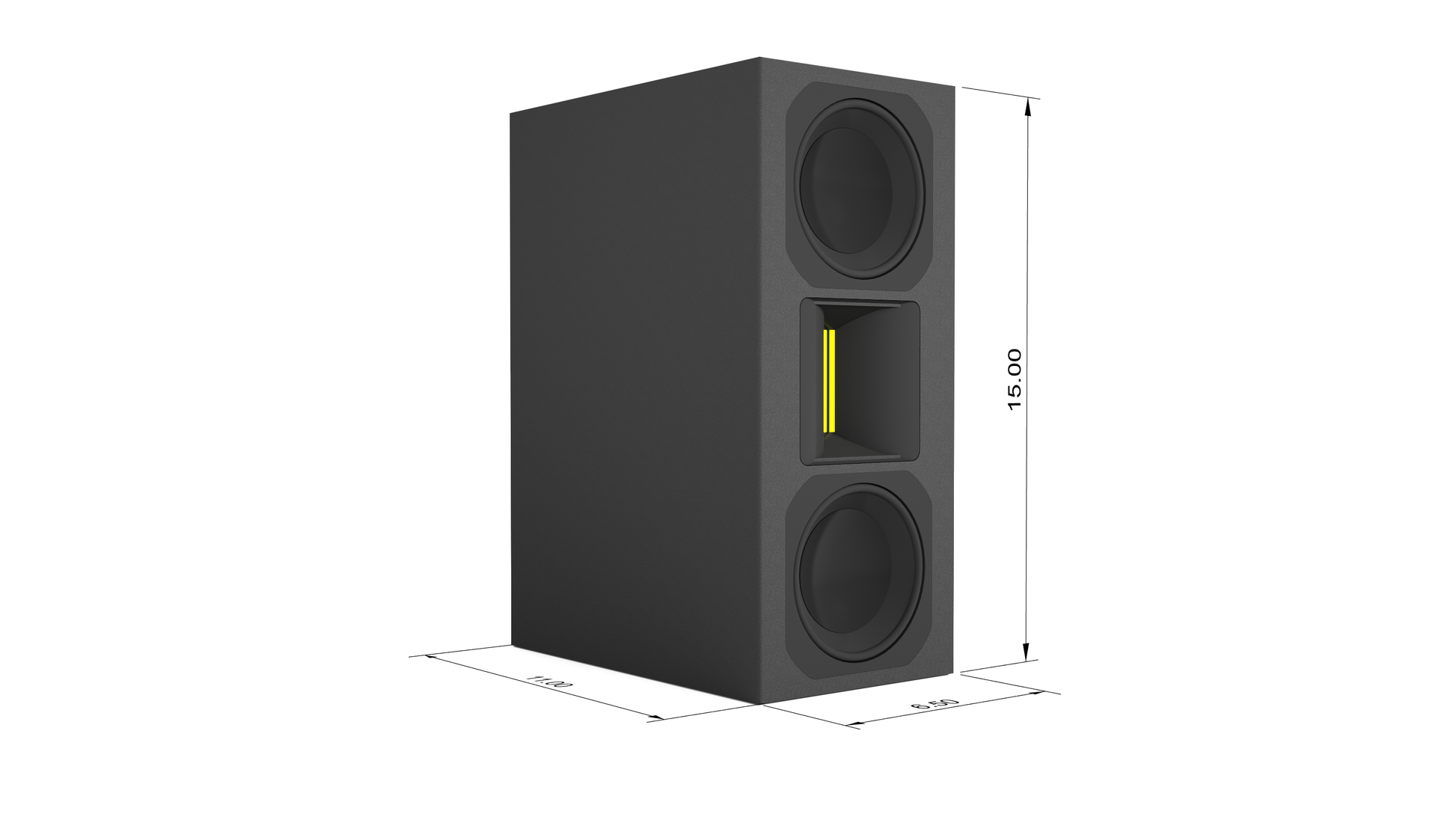

• Dimensions (H x W x D): 11" x 6.5" x 15" (280mm x 165mm x 380mm)
• Approximate Weight: 20# each

Discover the impressive soundstage and dynamic capabilities of the Katahdin Audio Apex MTM5 – where compact design meets compelling performance.
