CLA-208 Line Array Module

Free Shipping! - CLA-208 Compact Line Array 2x08 Modules

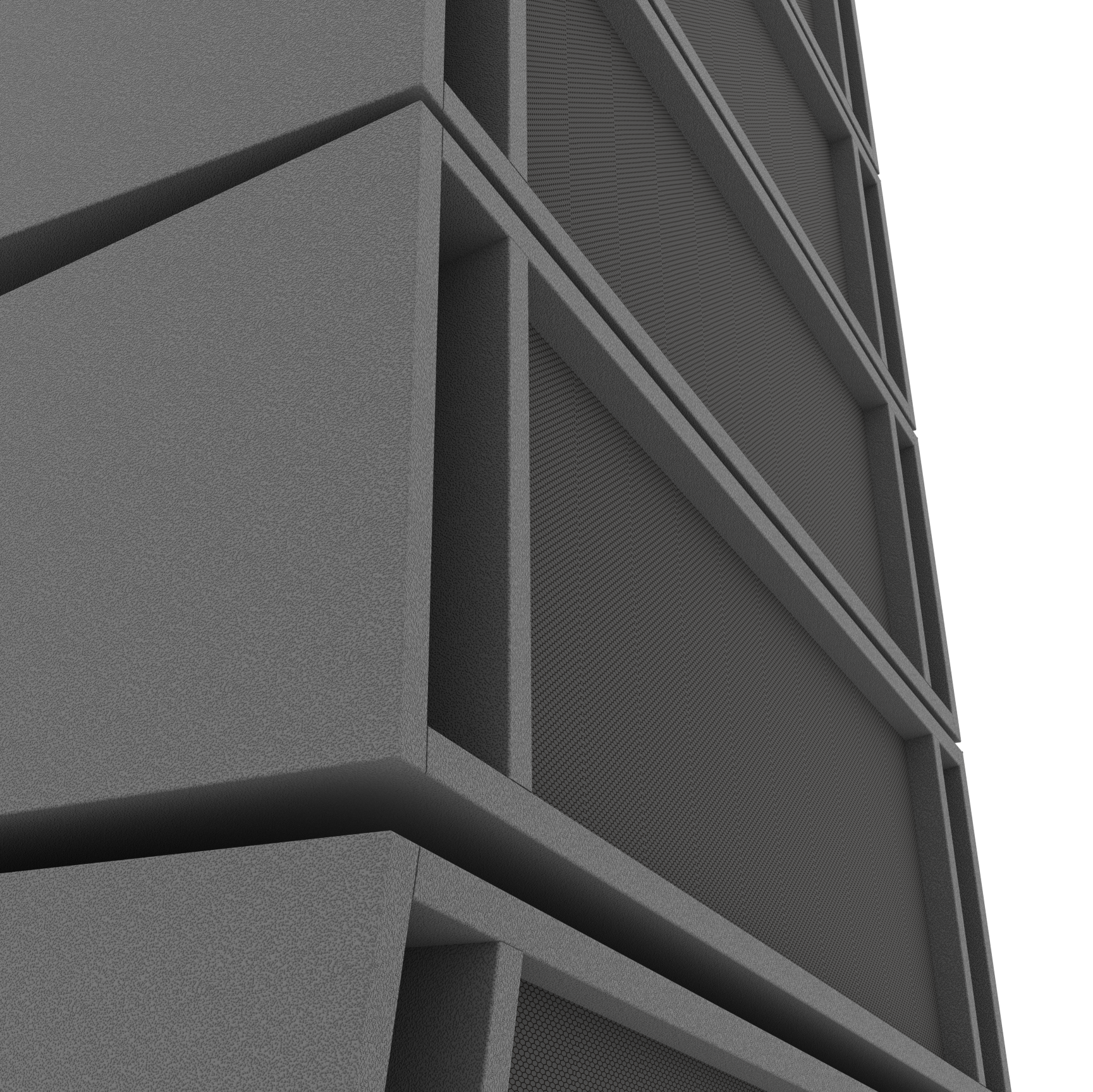

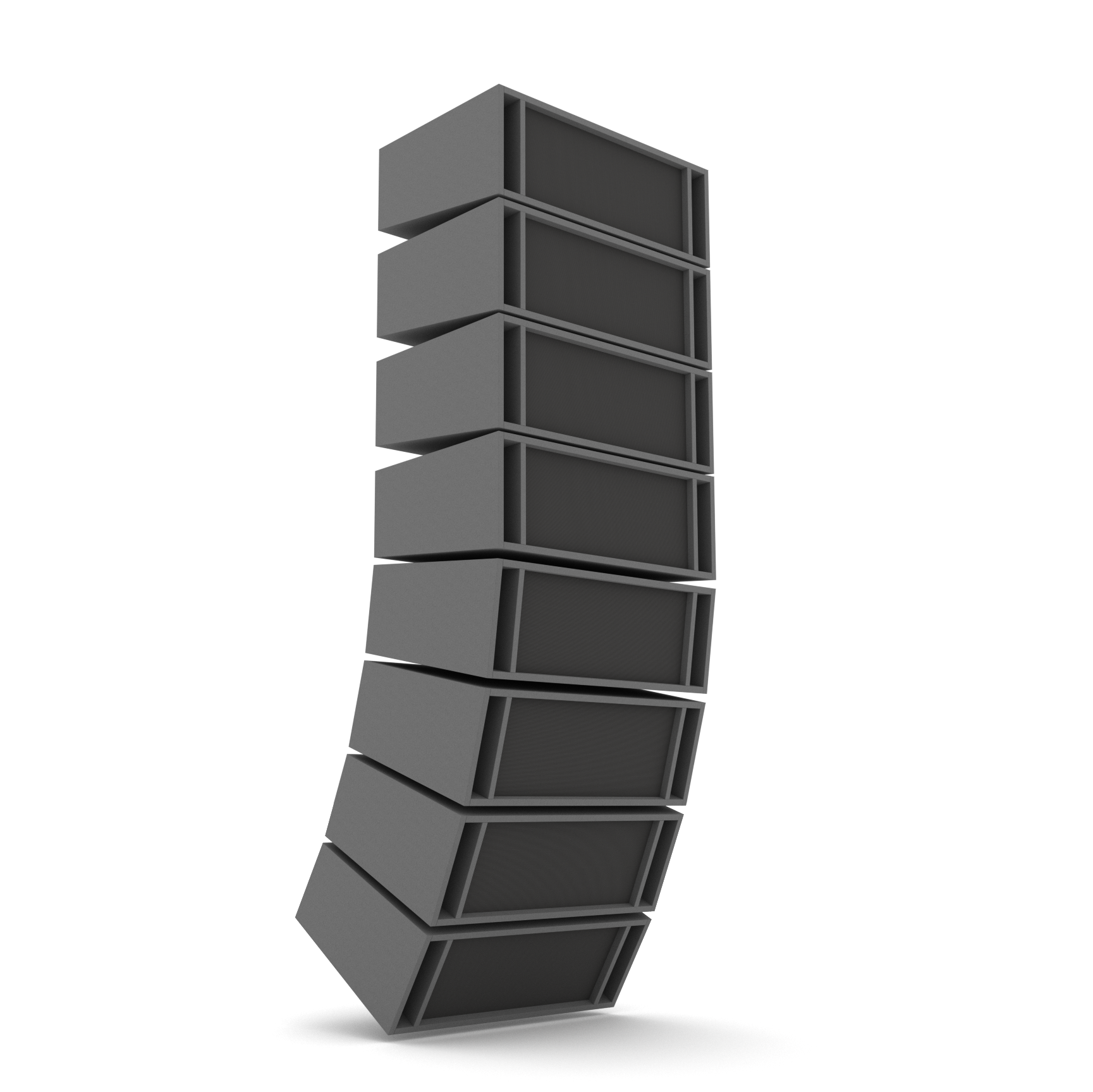

Note, the CLA-208 is a single module (speaker enclosure). Contact us for large venue arrays for discount pricing. Array pictured is only for reference

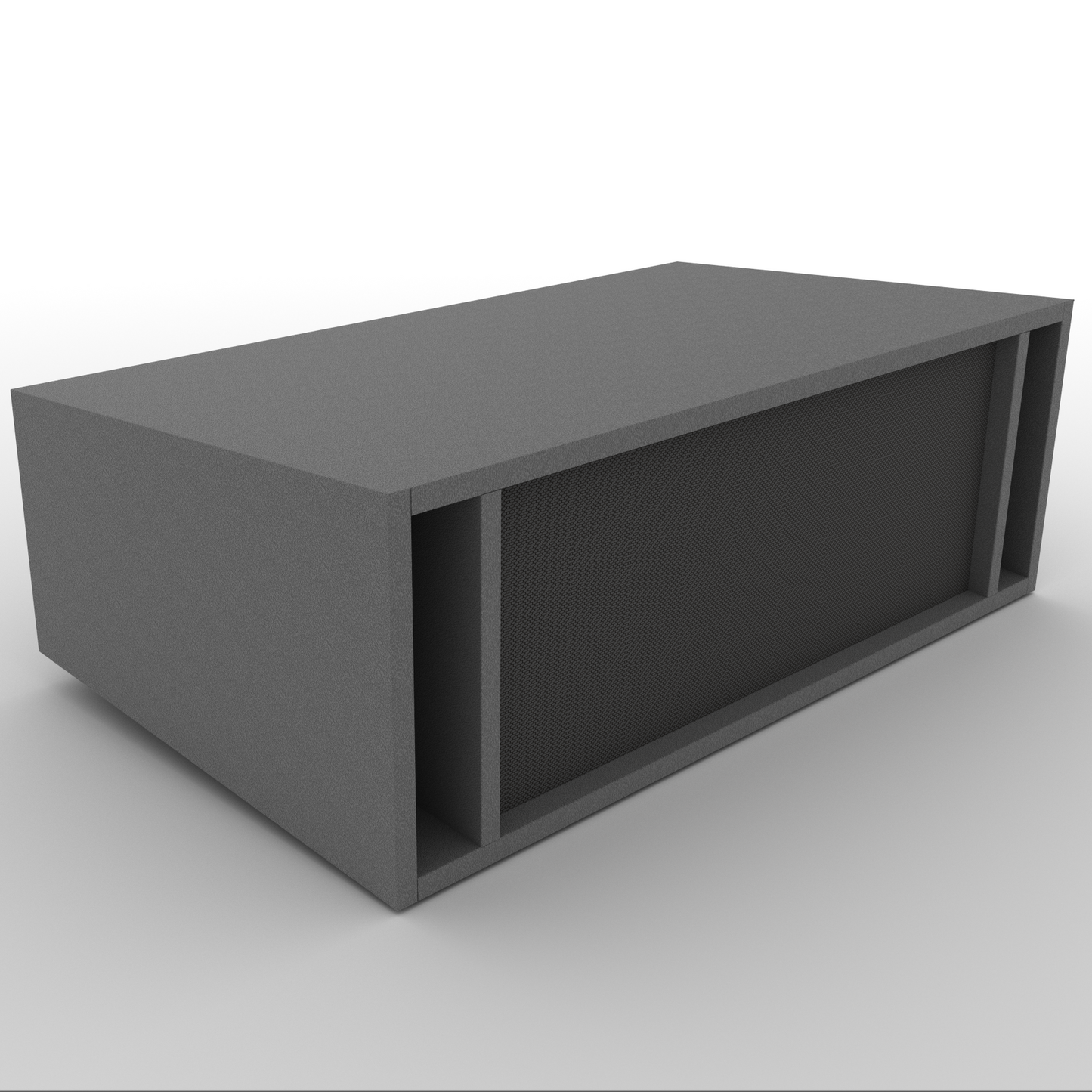

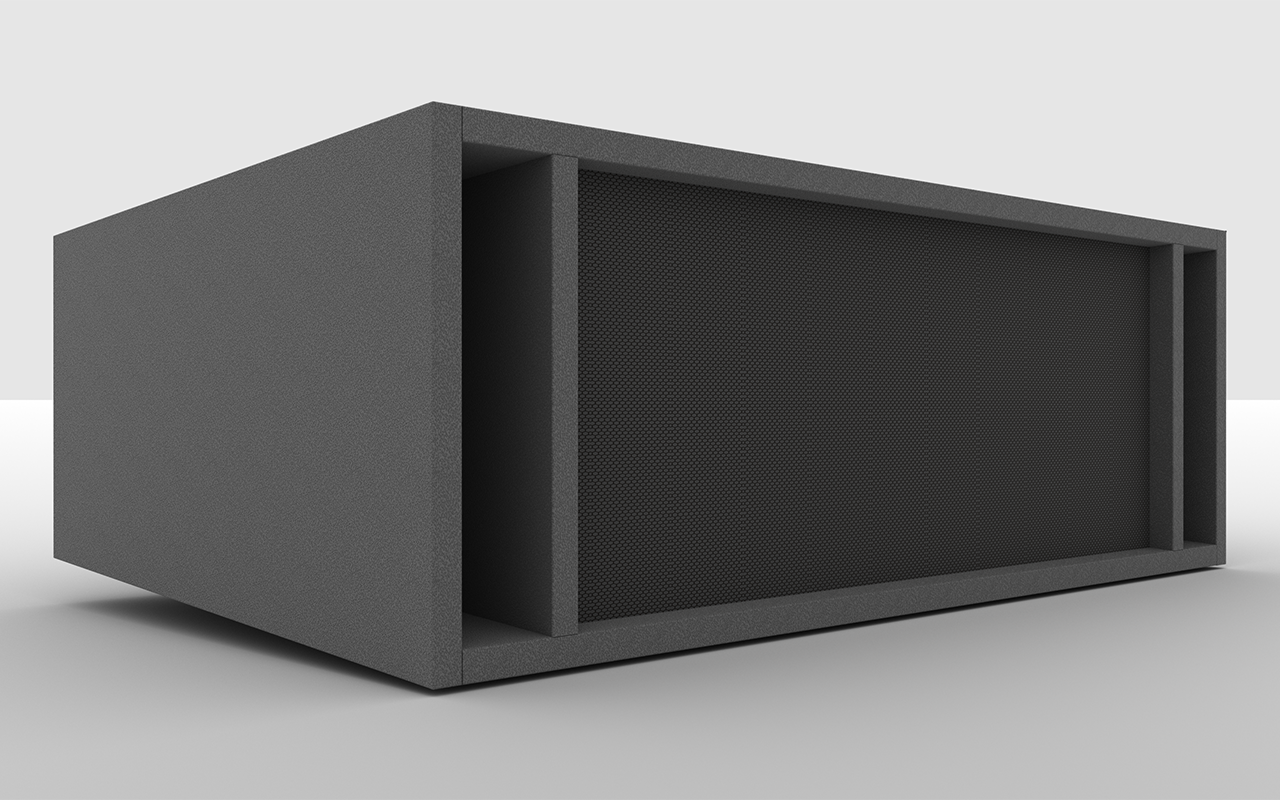

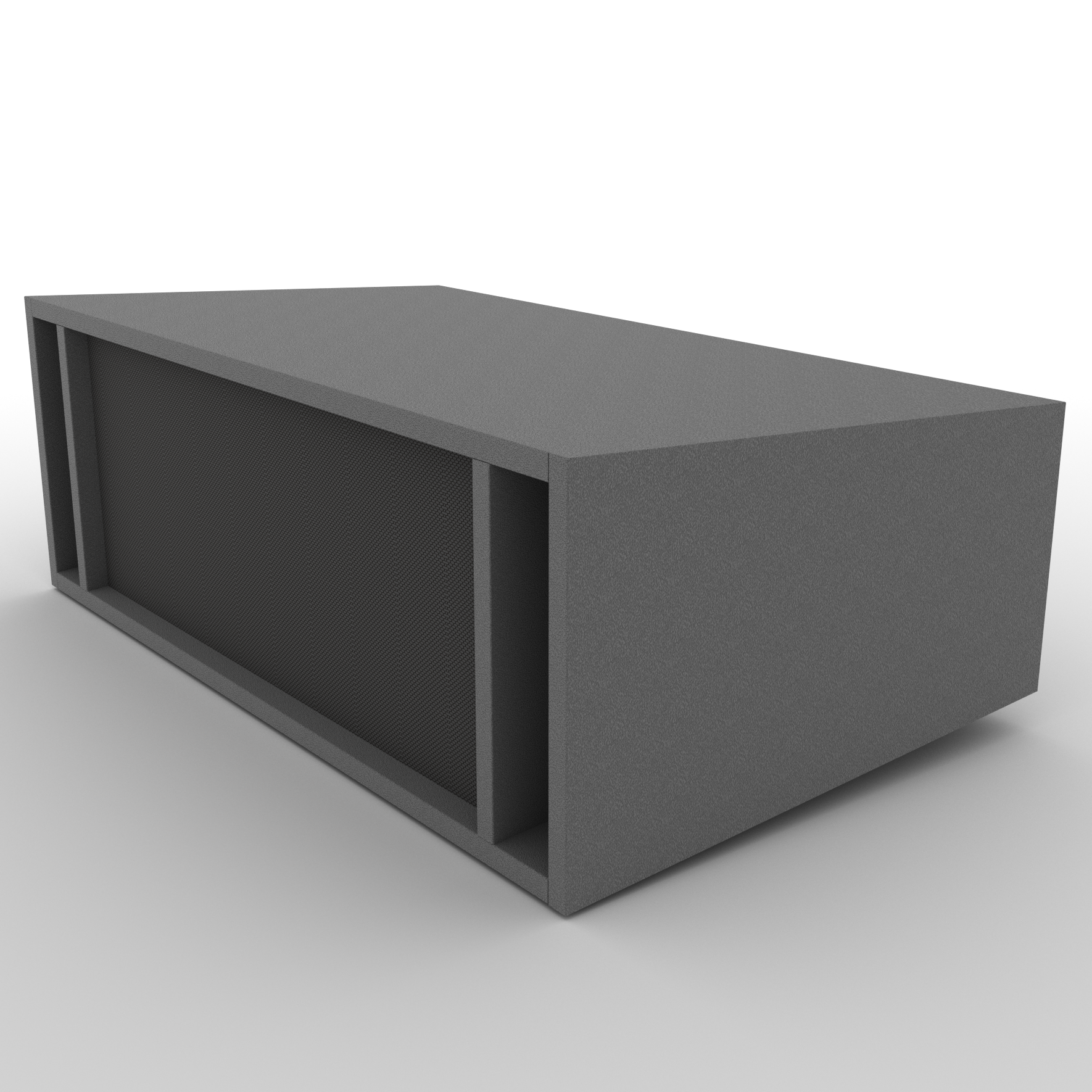

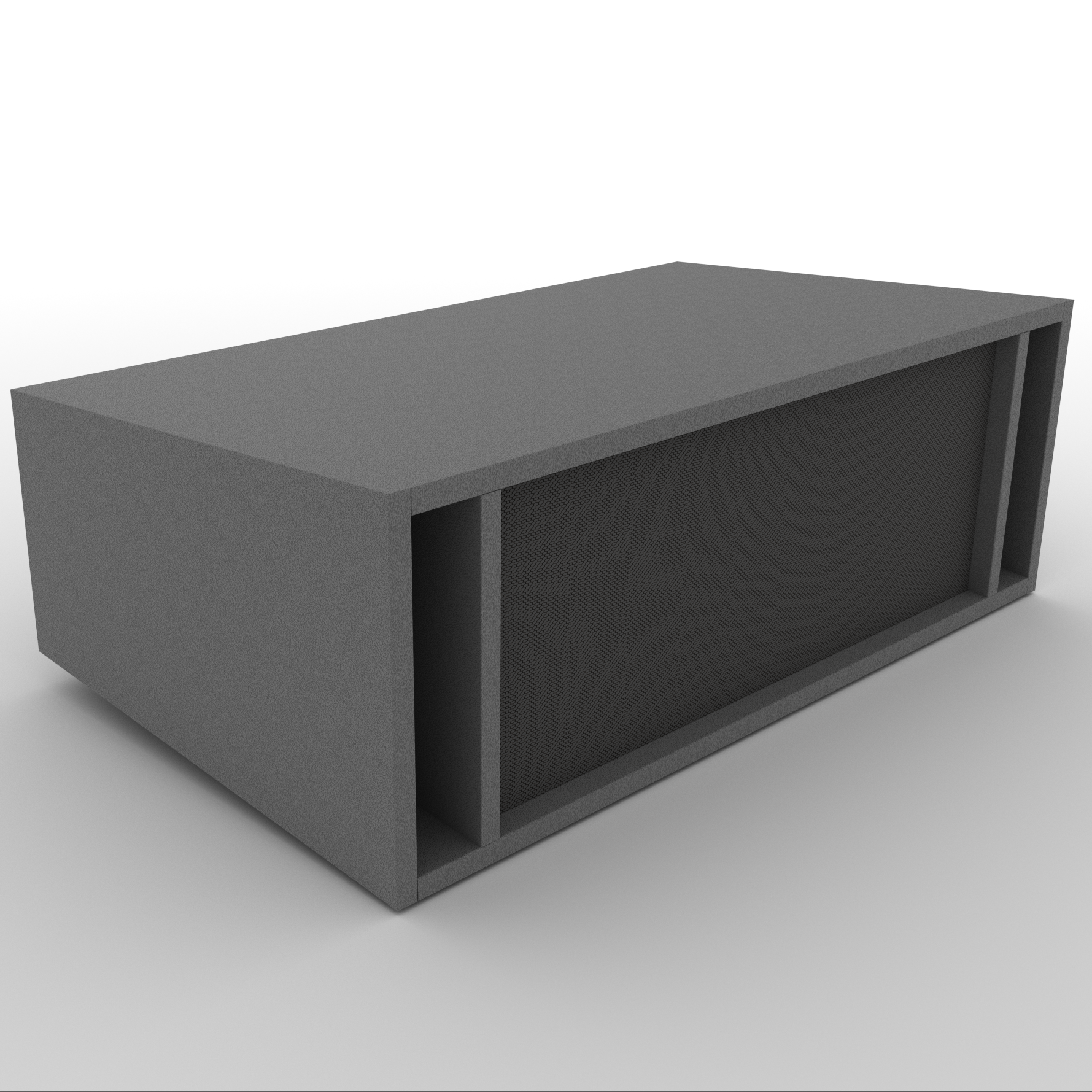

Overview The CLA-208 is a 2×08 configuration compact line array system designed to deliver an unmissable sound experience. With dual 8-inch low-frequency drivers complemented by integrated compression horn elements for mid and high frequencies, this 800‑watt, tapered design speaks to both the audiophile and the professional on the road. Finished in an eye-catching black speckled aesthetic, the CLA-208 is as much a visual statement as it is a powerhouse of sound

Acoustic & Mechanical Design

• Dual 8-Inch LF Drivers: The CLA-208 utilizes a pair of high-performance 8-inch drivers designed for robust mid-bass reproduction. Their placement in a shared bass chamber (optimized for a total internal volume of around 28 liters) provides tight, controlled low-end response.
  • A bass-reflex design with precision-tuned ports ensures that the system hits a target tuning frequency (imagine a tuned bass around 70–75 Hz) for maximum low-frequency efficiency.
• Integrated Compression Horn Drivers: Flanking the LF section are two compression horn modules designed to project clear, articulate highs across a wide coverage area.
  • Each horn is engineered with a controlled flare angle and a modest length (around 4–6 inches) that matches the drivers’ dispersion characteristics. Their design minimizes diffraction while ensuring a smooth integration with the LF section.
• Tapered Enclosure Architecture:
  • The overall enclosure features a carefully tapered front baffle, sculpted to merge the acoustic outputs into a coherent vertical wavefront—a key benefit of line array technology.
  • This taper not only enhances sound coverage consistency but also lends the speaker an elegant, aerodynamic profile.

Technical Specifications

• Power Handling:
  • Program Power Rating: 1000 watts
  • Dynamic (Peak) Capability: Designed to handle sudden bursts, ensuring no loss of clarity even at high volumes.
• Enclosure Volume & Dimensions:
  • LF Chamber Volume: Approximately 28 liters (for dual-driver integration)
  • Approximate Internal Dimensions:
    • Width: ~27 inches
    • Height: ~9 inches
    • Depth: ~14 inches
  • Note: These dimensions are conceived in imperial units (inches), while retaining the volume specification in liters for precision tuning.
• Driver Configuration:
  • LF Drivers: Dual 8-inch cones mounted in a vented bass chamber
  • Compression Drivers: Two dedicated horn modules, each optimized for mid/high frequency projection
• Acoustic Tuning:
  • Bass Reflex Port:
    • Port Size: ~2x9 inches
    • Physical Port Length: ~4.2 inches (with effective length adjustments from end corrections for precise low-end tuning)
  • Horn Exit Dimensions:
    • Throat diameter and mouth flare are designed to balance output and directivity, ensuring maximum clarity and coverage.
• Finish & Build:
  • Exterior: Black speckled finish that not only camouflages minor blemishes from touring life but also offers a modern, stylish look.
  • Construction: The enclosure is built from high-density 18mm Baltic Birch plywood with internal bracing for rigidity, with internal damping treatments strategically placed to control resonances.

Aesthetic & Practical Highlights

• Striking Visual Design:
  • The black speckled finish gives the CLA-208 an upscale, contemporary appearance that complements any stage or venue décor.
• Compact & Portable:
  • Despite its power and performance, the compact line array has been engineered to be transport-friendly—ideal for touring professionals or installed sound systems in smaller venues.
• Integrated Wavefront Control:
  • The tapered baffle and streamlined horn structures work together to form a cohesive acoustic pattern, ensuring that high-energy output is delivered evenly throughout a venue.

Ideal Applications

• Live Sound Reinforcement:
  • Perfect for mid-sized concert venues and festivals demanding consistent coverage over varied audience levels.
• Installed Systems:
  • Ideal for permanent installations in clubs, conference halls, or theaters where clarity and controlled dispersion are paramount.
• Portable PA Systems:
  • Its compact design and rugged construction make it an excellent choice for mobile operators seeking both high power and aesthetic appeal.
