KA-065BNC-MTM

Introducing the KA-065BNC-MTM

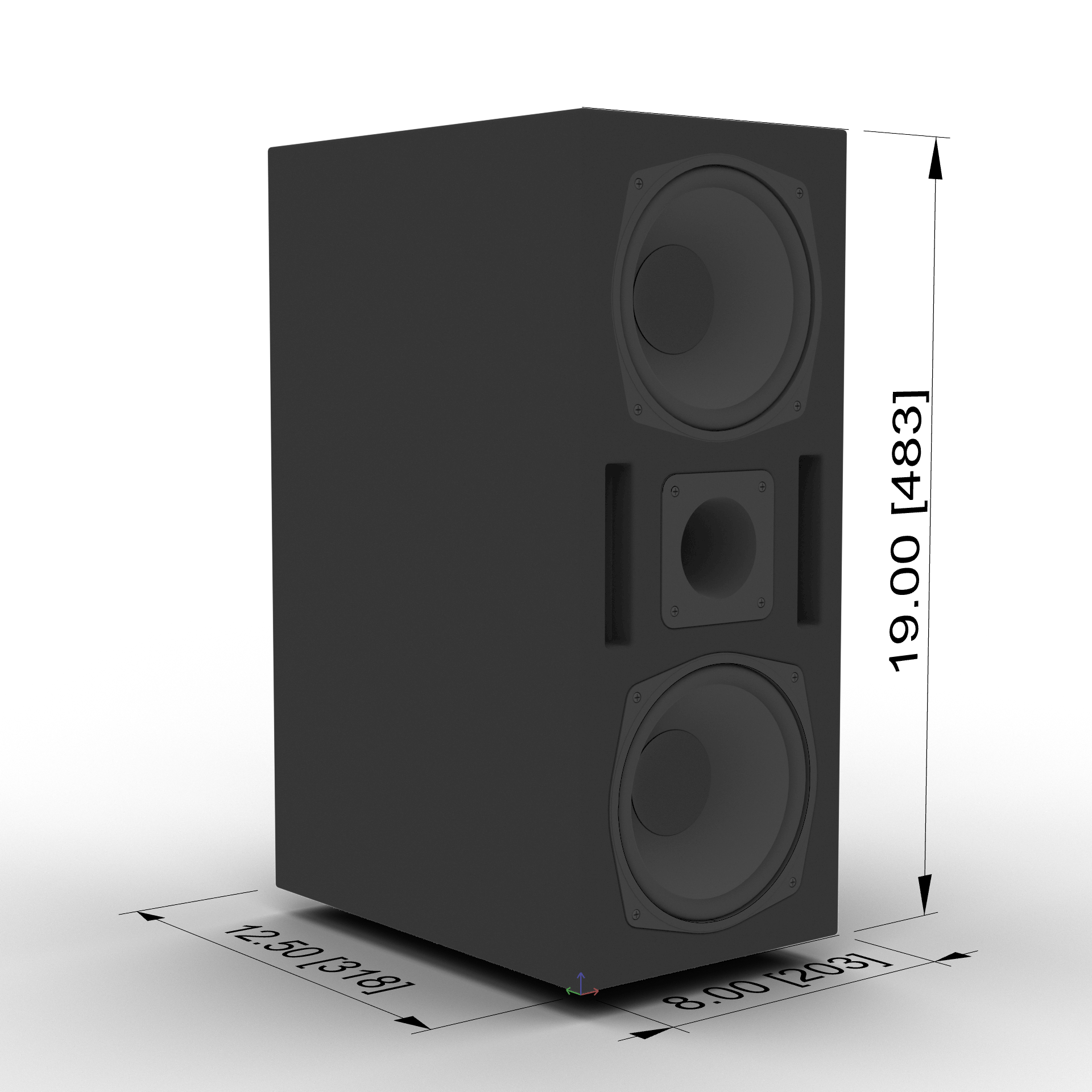

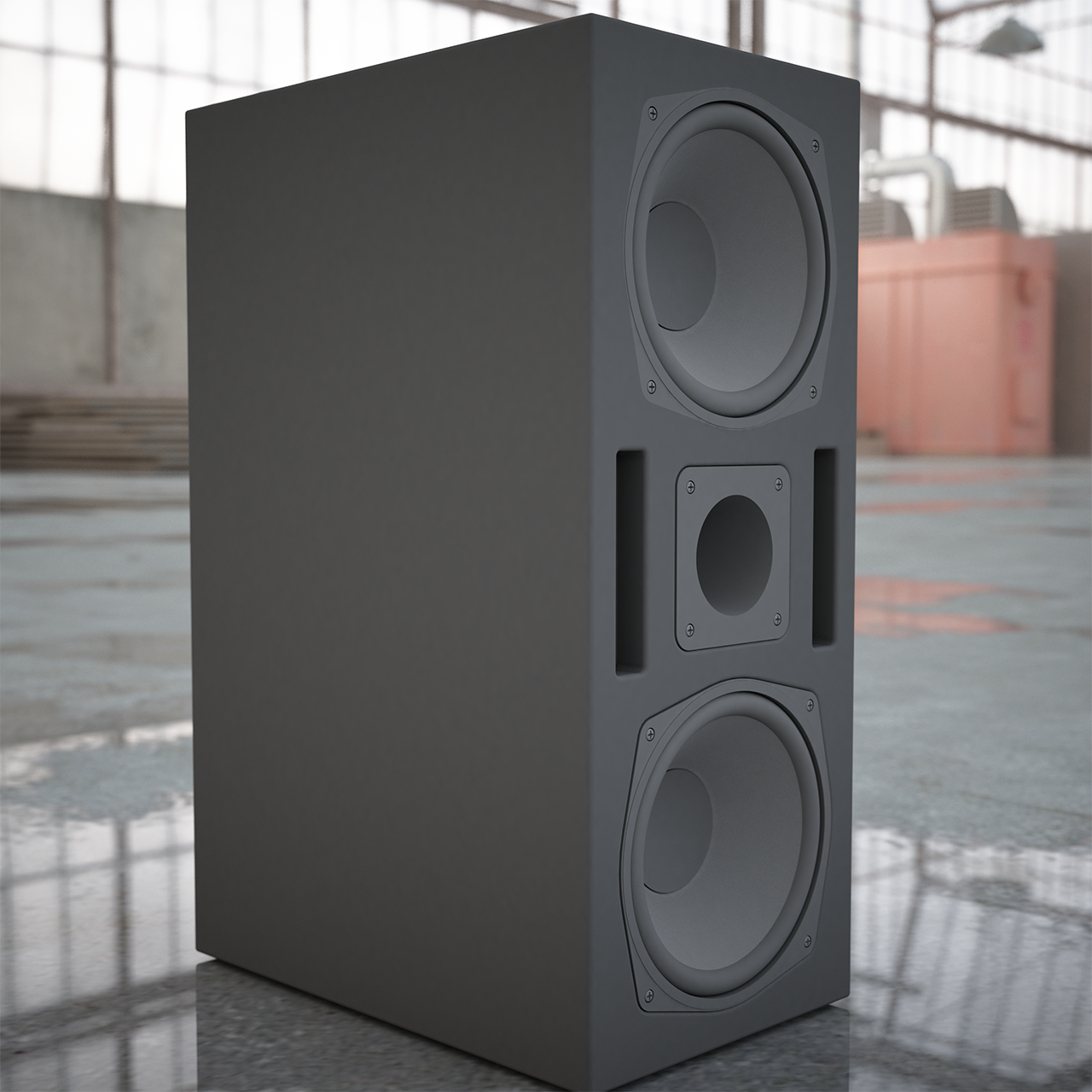

Experience uncompromised sonic mastery with the KA-065BNC-MTM—a flagship MTM (mid‑tweeter–mid) loudspeaker system that fuses the best of B&C and Eminence technologies into one stunning, performance-driven package. Designed in a refined d’apollito configuration, this speaker marries two 6.5″ B&C 6NDL38 woofers with an Eminence APT80 tweeter for a truly dynamic audio experience that covers every nuance of your music.

Exceptional Midrange Drive & Superior Power Handling At the heart of the KA-065BNC-MTM lie the twin 6.5″ B&C 6NDL38 drivers—each engineered at a nominal 4 Ω and rated for 150 W continuous power. Wired in series, these mid drivers become an 8‑Ω system that not only achieves perfect phase alignment but also doubles the available voltage swing. This clever configuration effectively elevates the midrange power handling to an impressive 300 W, ensuring deep, controlled basses and dynamic midrange expression from 70 Hz to 5,000 Hz. The exponential cone design paired with WP Waterproof Front Side treatment guarantees robust performance and exceptional clarity even in the most demanding listening environments.

Precision Treble Articulation with the Eminence APT80 Enhancing the high-frequency spectrum is the Eminence APT80 tweeter—an 8‑Ω high-frequency transducer engineered for razor‑sharp clarity and detailed transient response. The APT80 is designed to deliver crisp and articulate highs that unveil the delicate shimmer and intricacy of every musical detail. Integrated through a meticulously tuned, third‑order high‑pass filter, this tweeter ensures that only the purest high-frequency content is reproduced, resulting in a natural and expansive treble that complements the powerful midrange perfectly.

Seamless Acoustic Integration The KA-065BNC-MTM is built around a carefully calibrated crossover network that harmonizes the sonic contributions of its drivers.

• Mid Section: A dedicated low‑pass filter, optimized for the 8‑Ω mid load, preserves the warmth and depth of the dual woofers while maintaining tight control over their frequency output.
• Tweeter Section: A steep high‑pass filter, tailored for the Eminence APT80, ensures that only the desired high frequencies reach the tweeter—protecting it and enhancing its clarity.

A strategic phase inversion of the mid circuits relative to the tweeter creates perfect phase alignment at the critical 2.5 kHz transition, delivering a smooth, flat on‑axis response that translates to natural, lifelike sound.

A New Benchmark in Audio Excellence The KA-065BNC-MTM isn’t just a speaker—it’s an audio revolution. Perfect for premium live sound, critical installations, and high‑end studio monitoring, this system embodies B&C’s and Eminence’s relentless pursuit of sonic perfection. With its robust midrange power, exquisitely detailed treble, and seamless integration across the frequency spectrum, the KA-065BNC-MTM sets a new standard in performance and artistry.
